Floor plan gallery

Toilet / WC / washroom

Very small 2-3sqm

Small 3-5sqm

Medium 5-8sqm

Toilet / WC / washrooms

Square two in a row w/c

120 x 130 cm (1.5sqm)

Photo preview of a very small square two in a row w/c

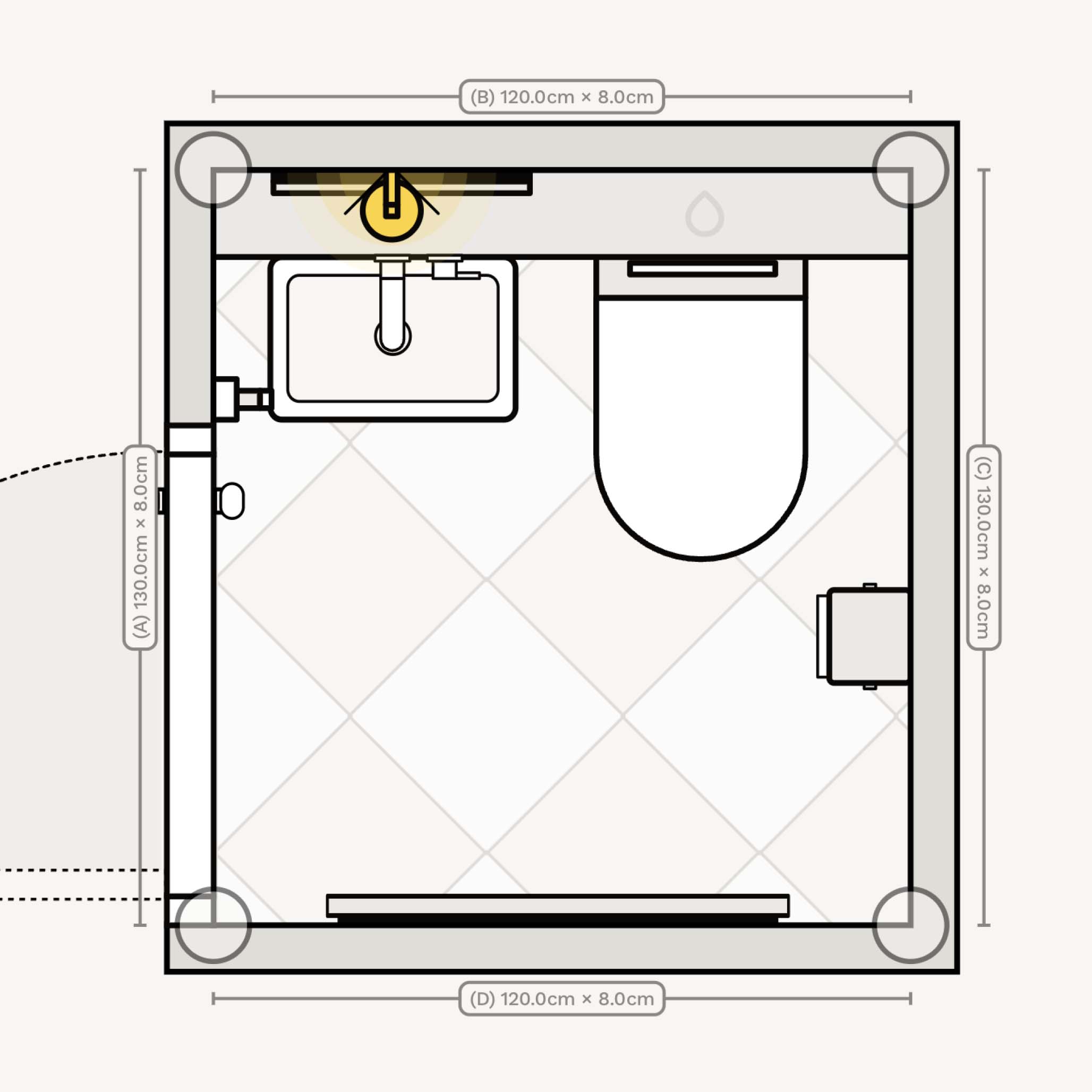

Floor plan / layout of a very small square two in a row w/c

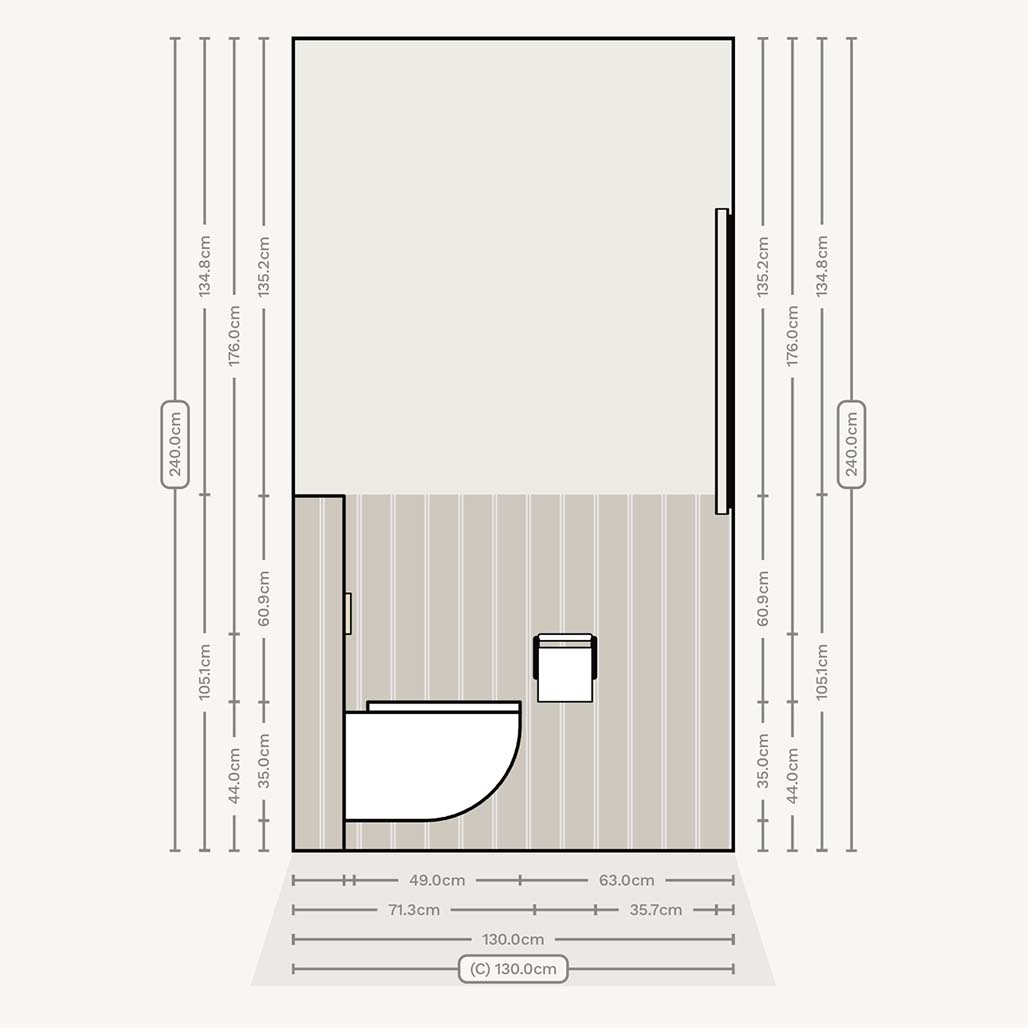

Wall elevation for a very small square two in a row w/c

Small w/c

125 x 96 cm (1.2sqm)

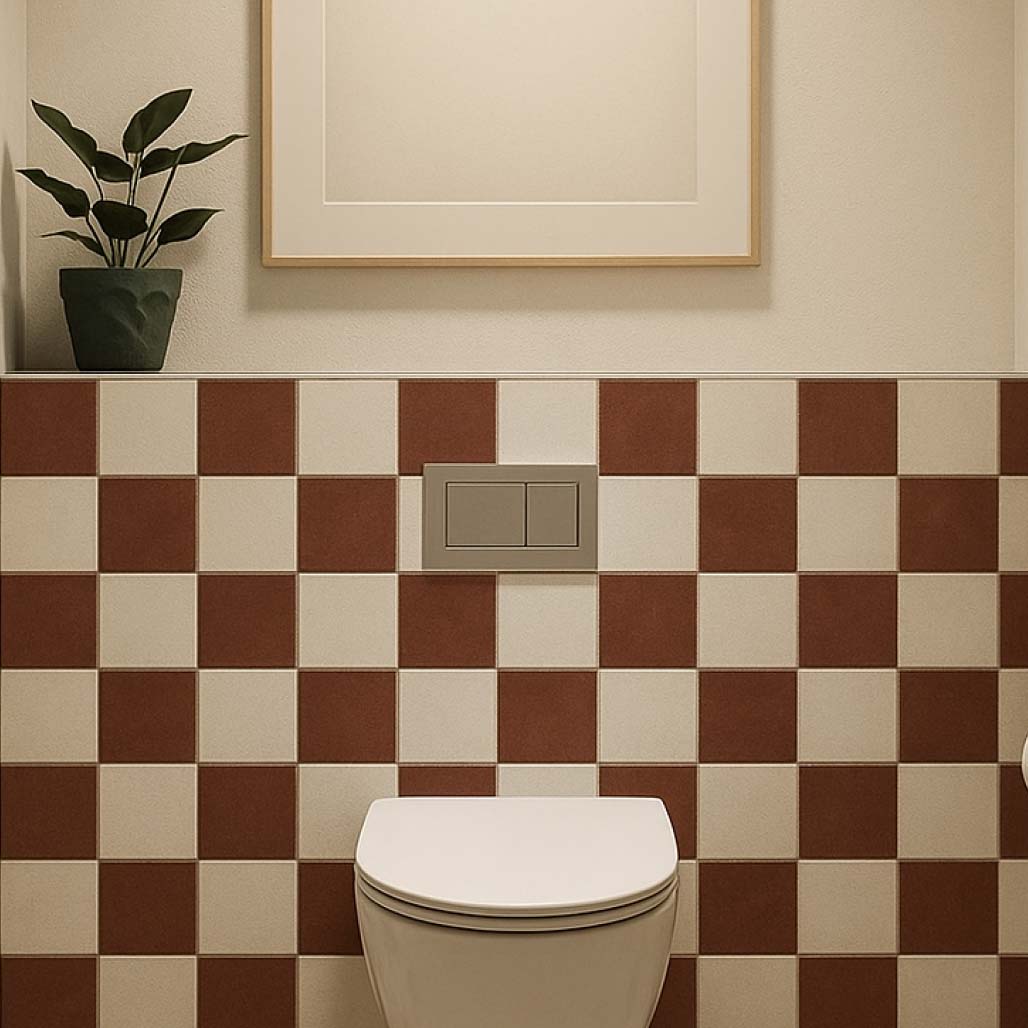

Photo preview of a very small WC / toilet photo preview

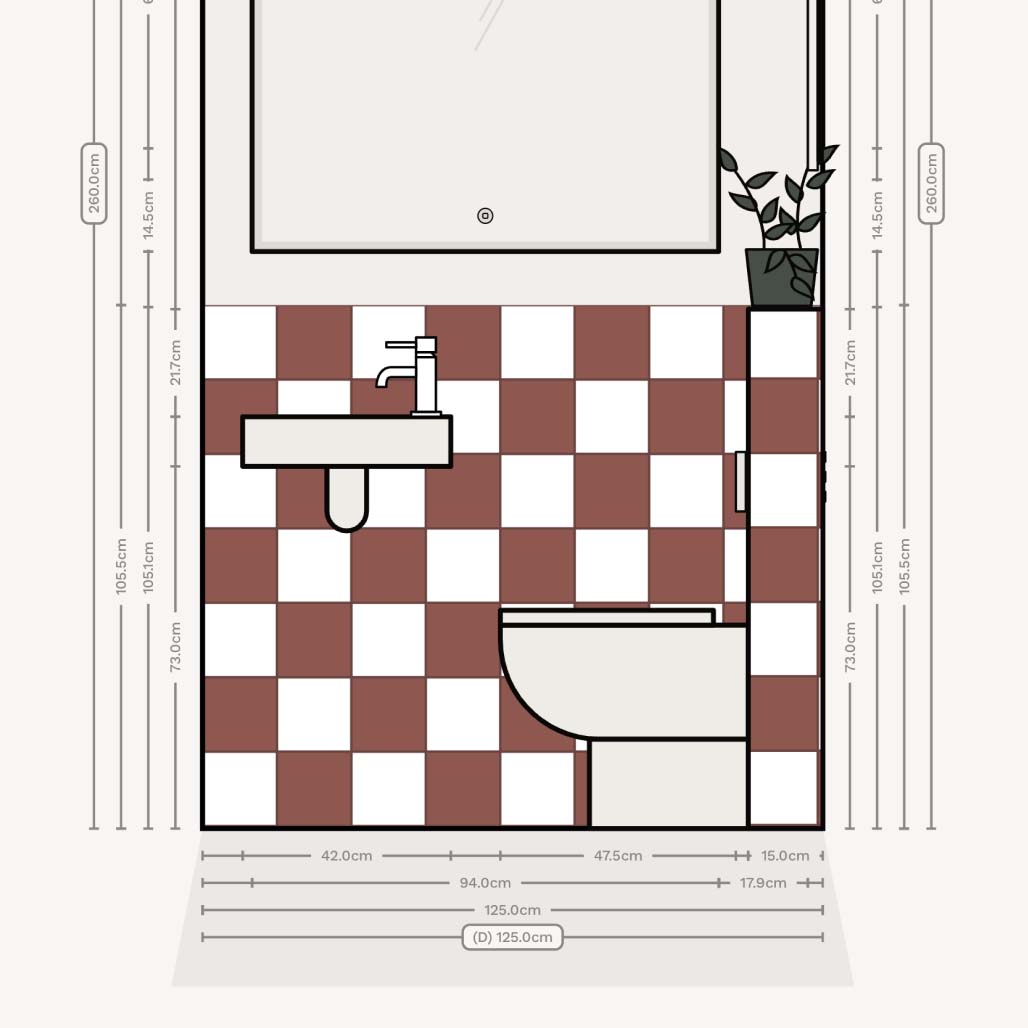

Wall elevation for a very small WC / toilet

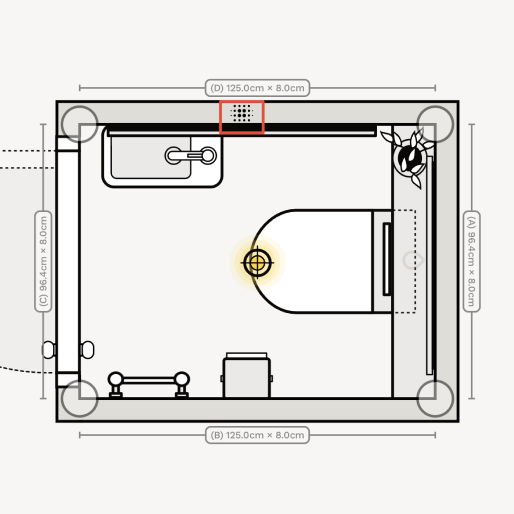

Floor plan / layout for a very small WC / toilet

Narrow w/c with sliding door

200 x 77cm (1.5sqm)

Photo preview of a very small, narrow w/c with sliding door

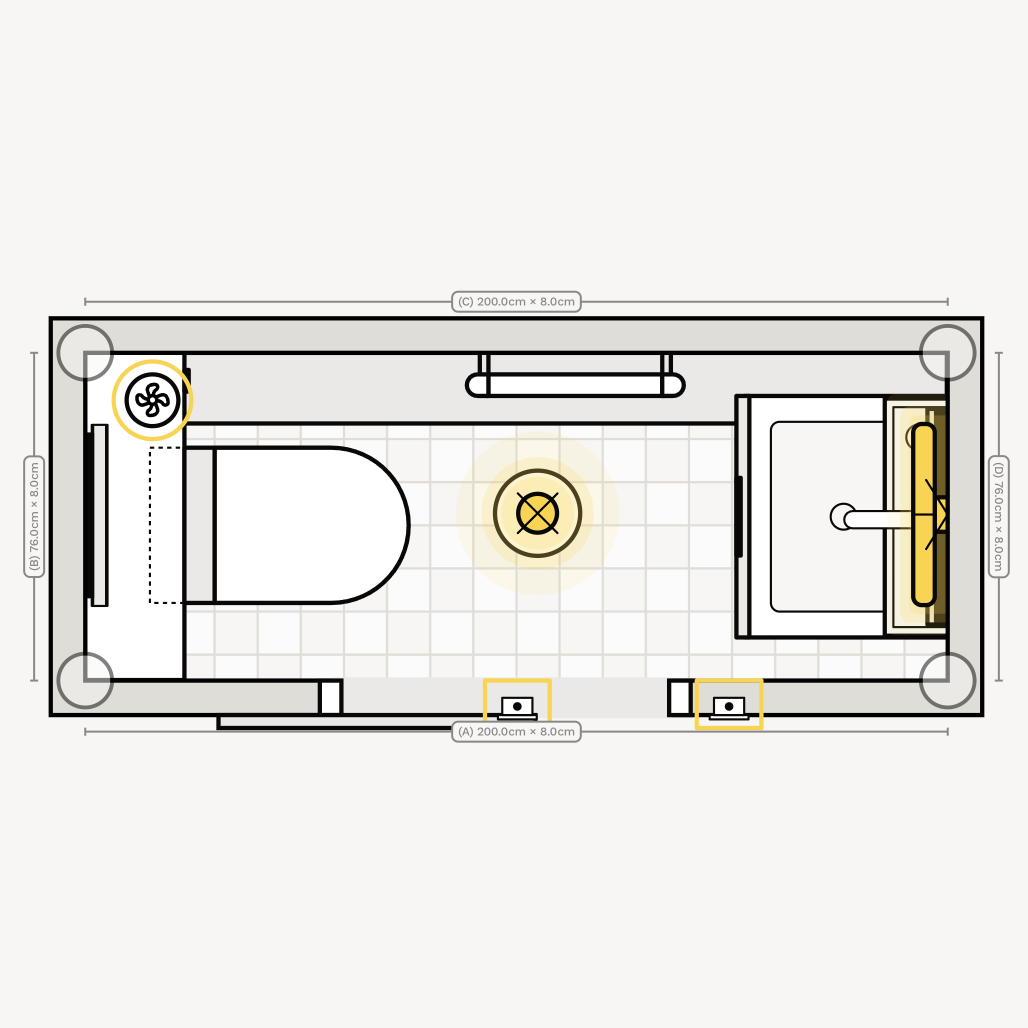

Floor plan / layout of a very small narrow w/c with sliding door

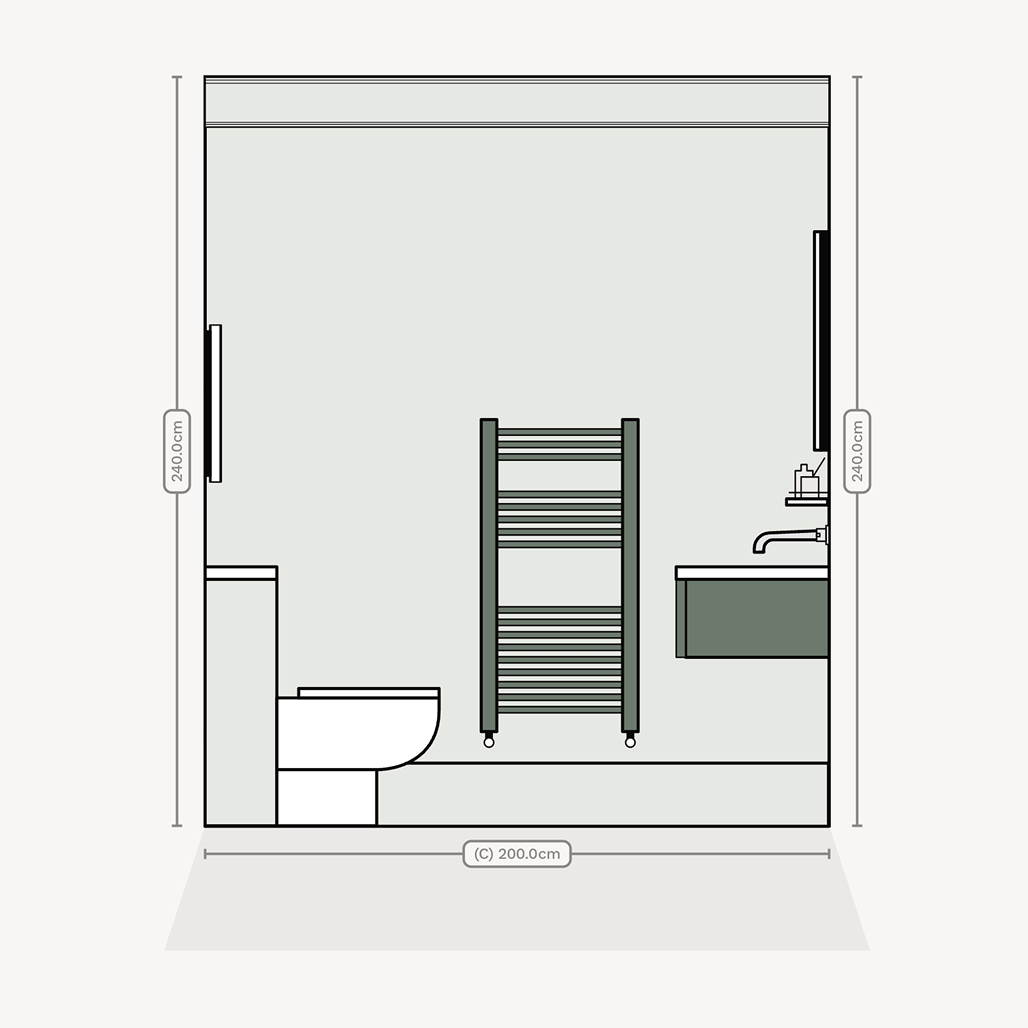

Wall elevation of a very small narrow w/c with sliding door

Long counter, sloped ceiling

180 x 140 cm (2.5sqm)

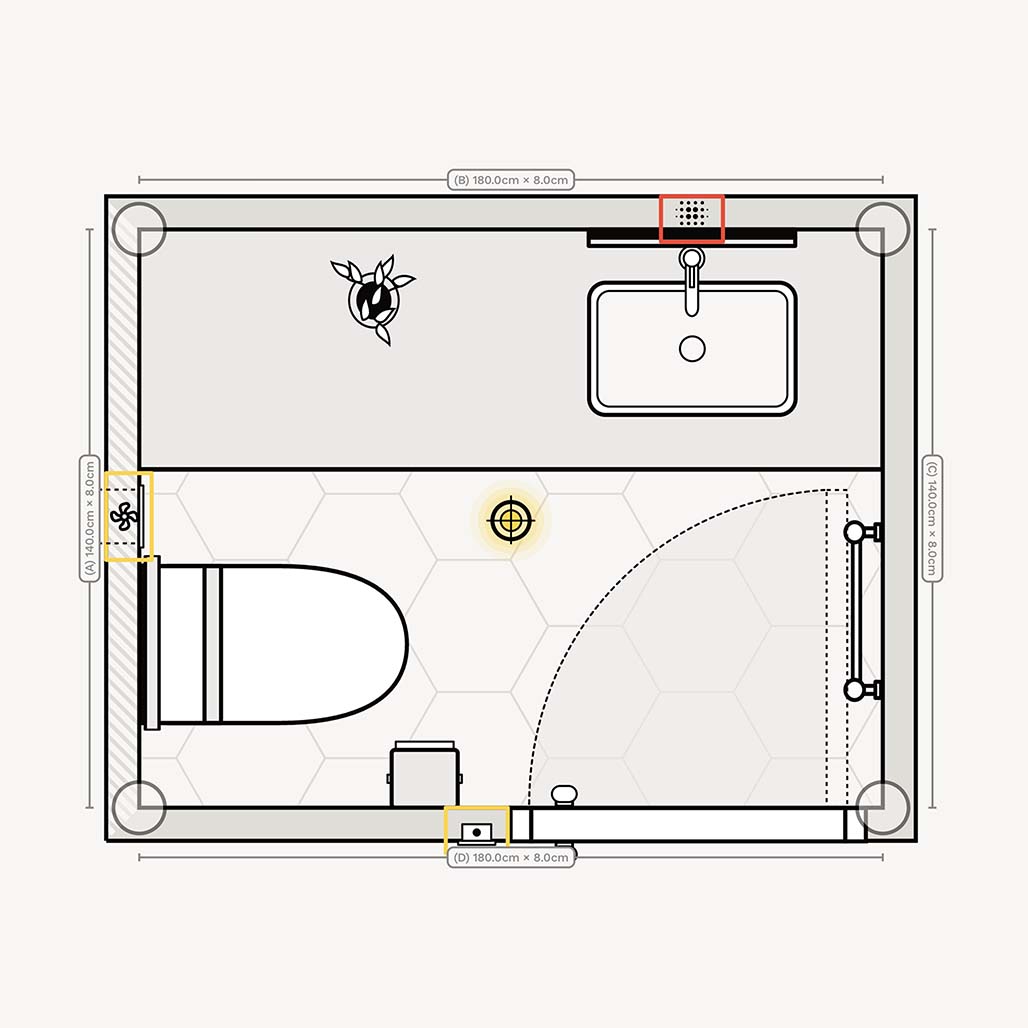

Layout / floor plan of a very small bathroom with long counter and sloped ceiling

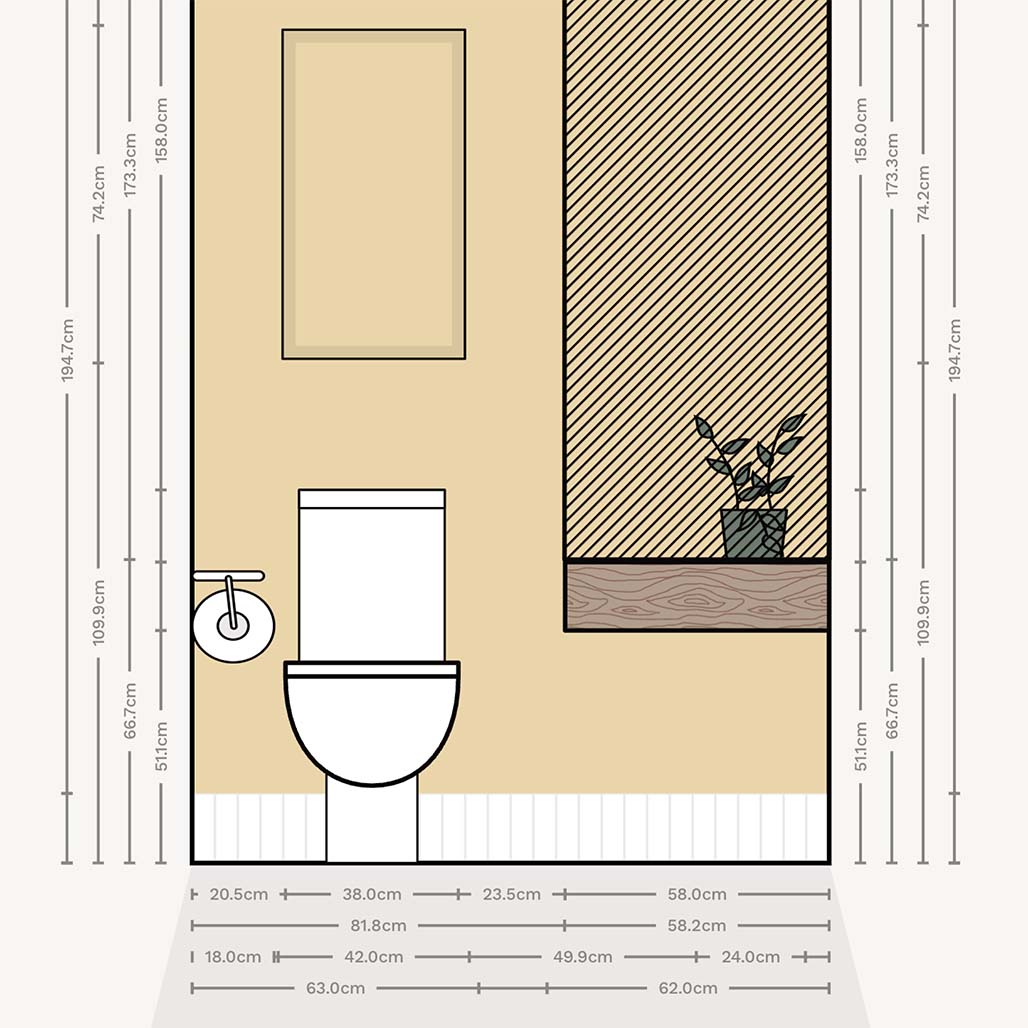

Wall elevation of a very small bathroom with a long counter and sloped ceiling

Photo preview of a very small bathroom with long counter and sloped ceiling

Very small bathrooms (2-3sqm)

Ensuite with walk-in shower

160 x 160 cm (2.5sqm)

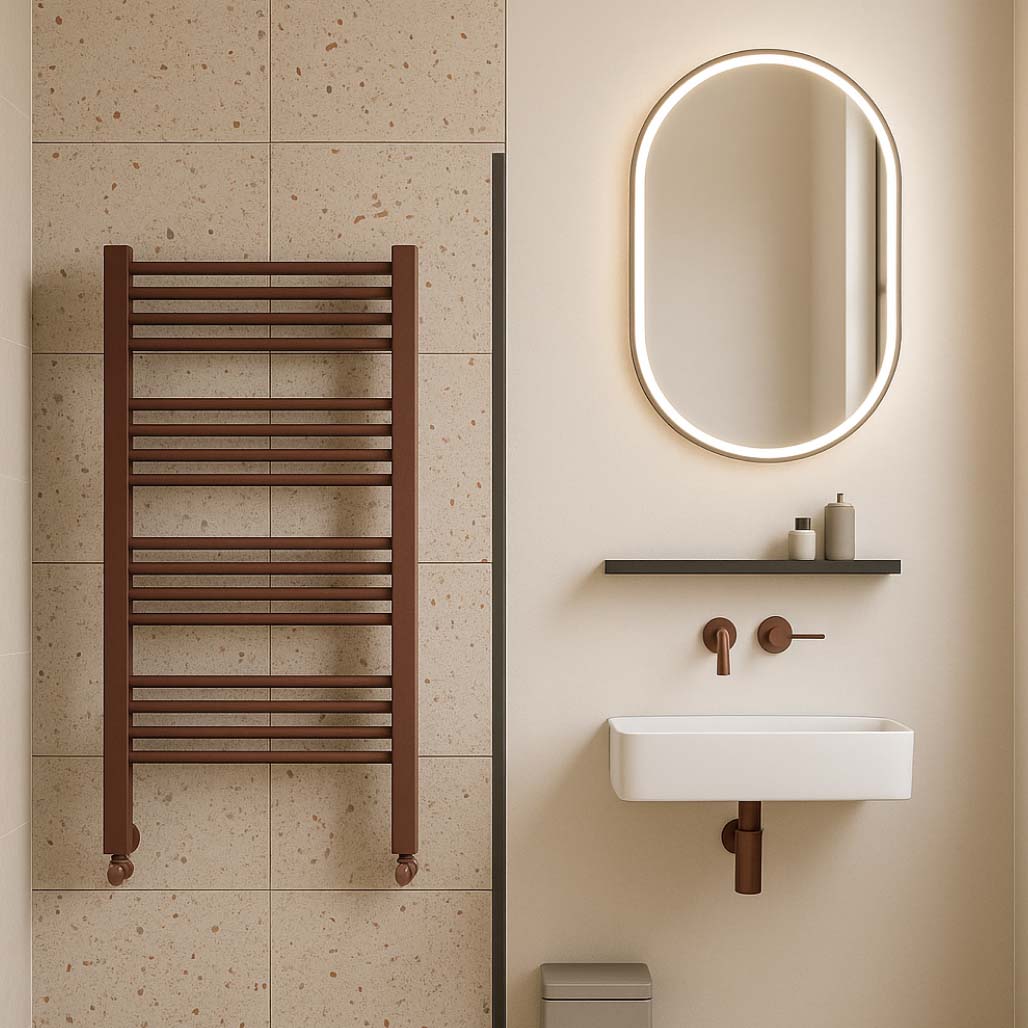

Photo preview of a very small ensuite with walk-in shower

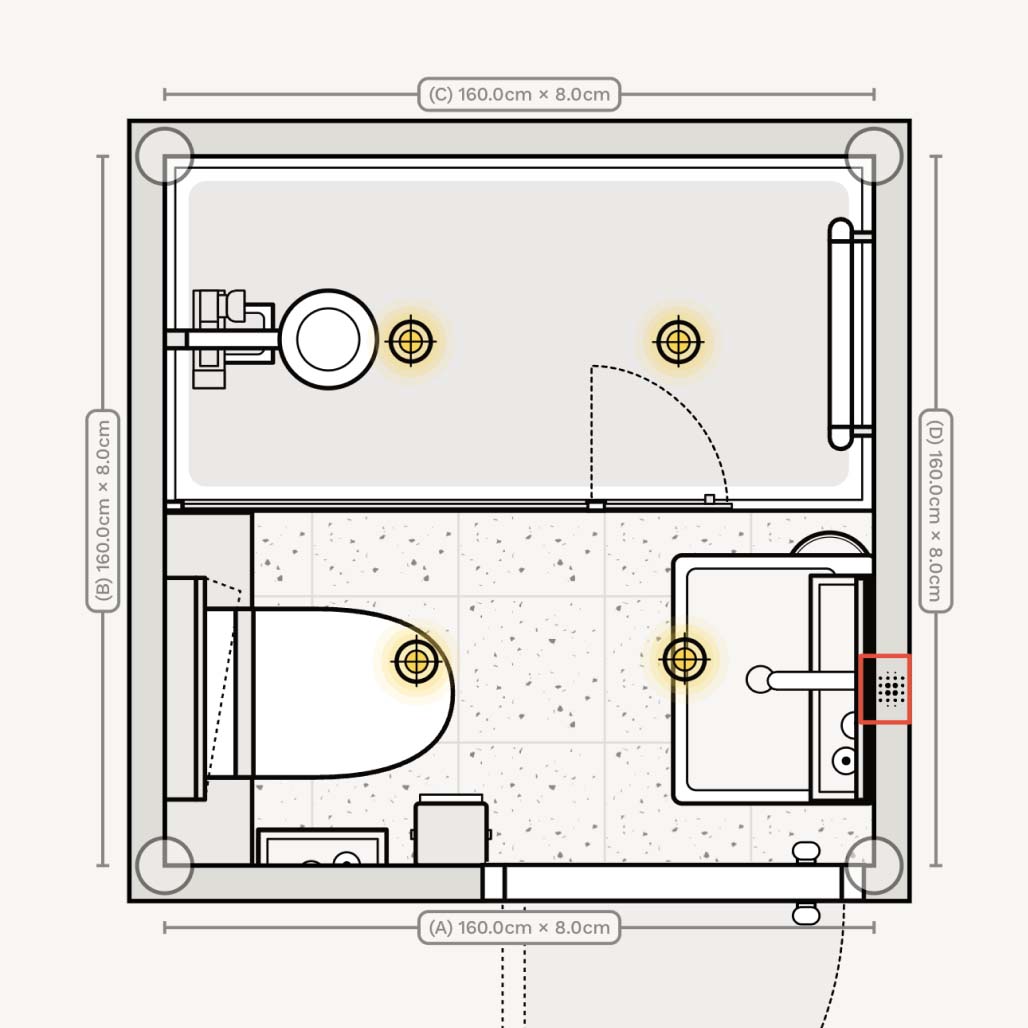

Very small ensuite with walk-in shower floor plan / layout

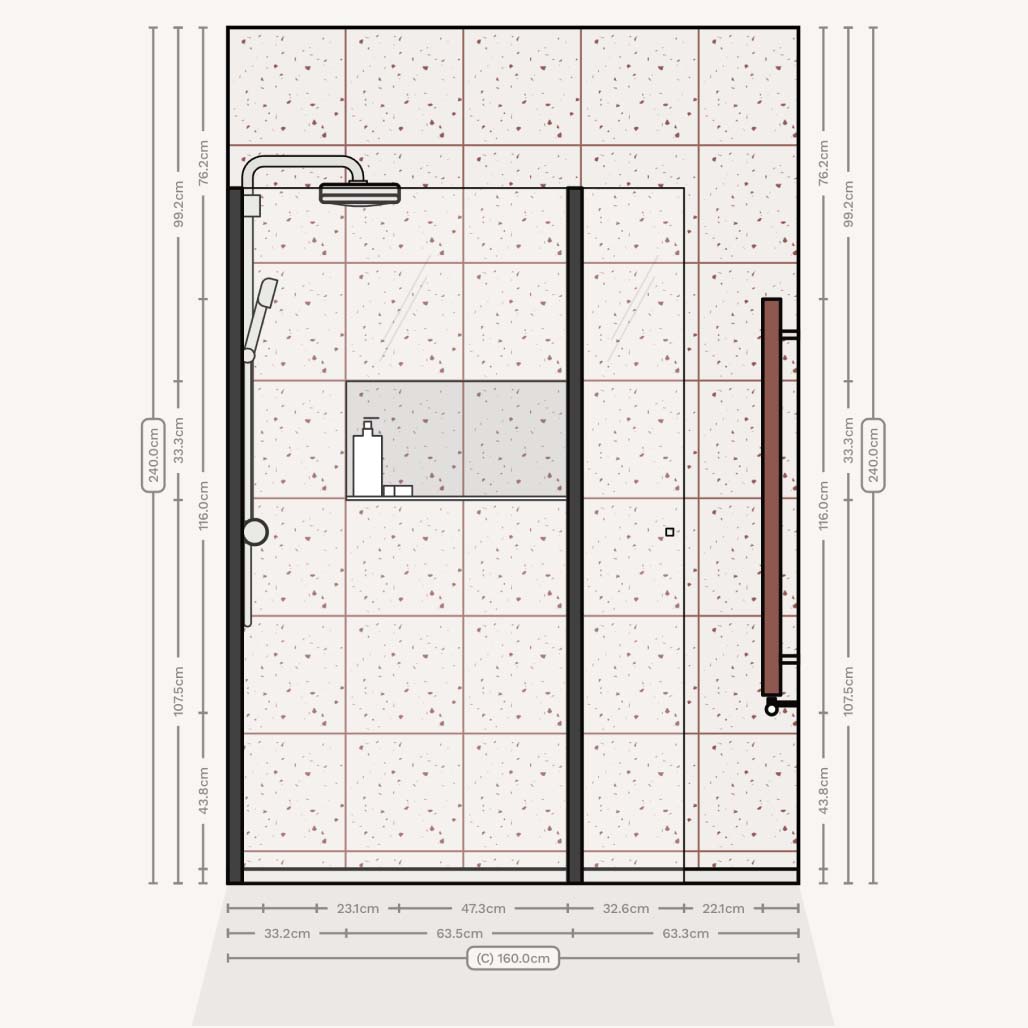

Very small ensuite with walk-in shower wall elevation

Square wetroom shower

170 x 170 cm (2.9sqm)

Photo preview of a very small square wetroom shower

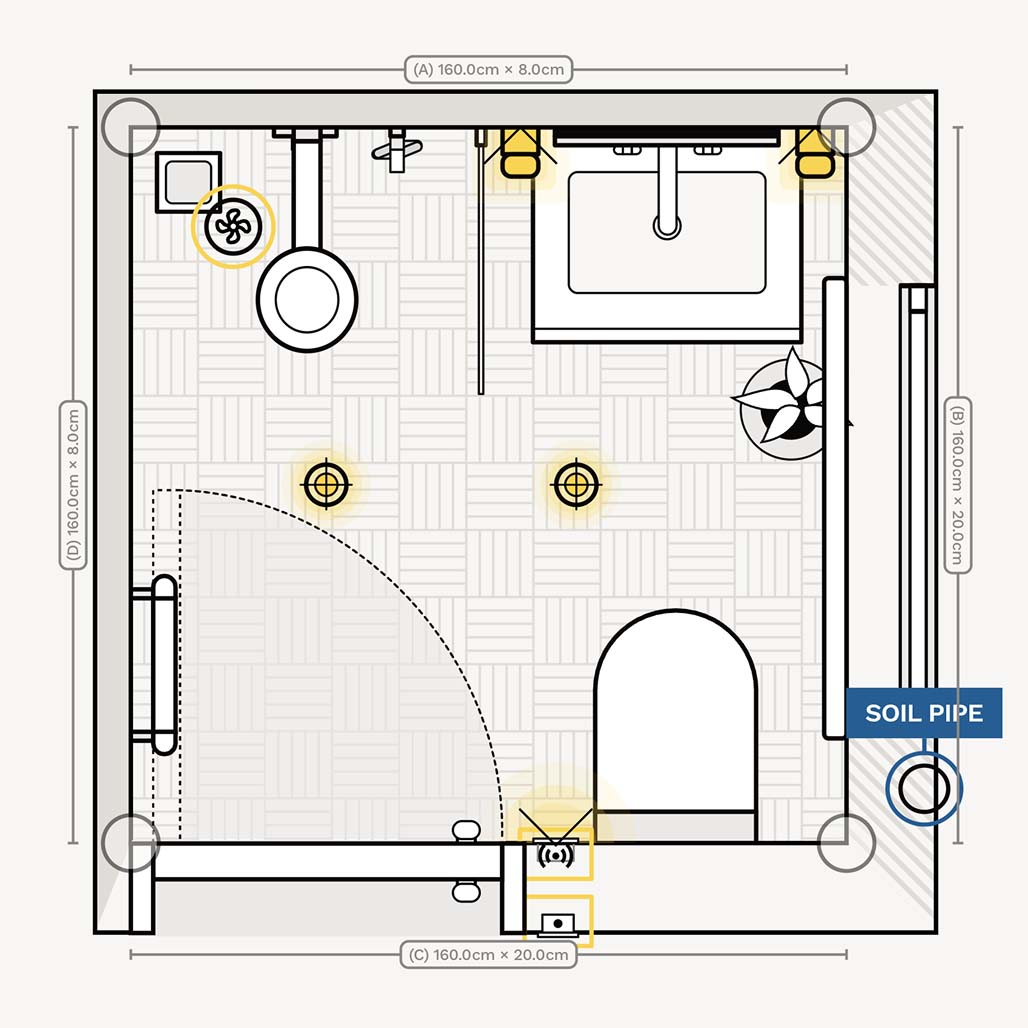

Very small square wetroom shower layout / floor plan

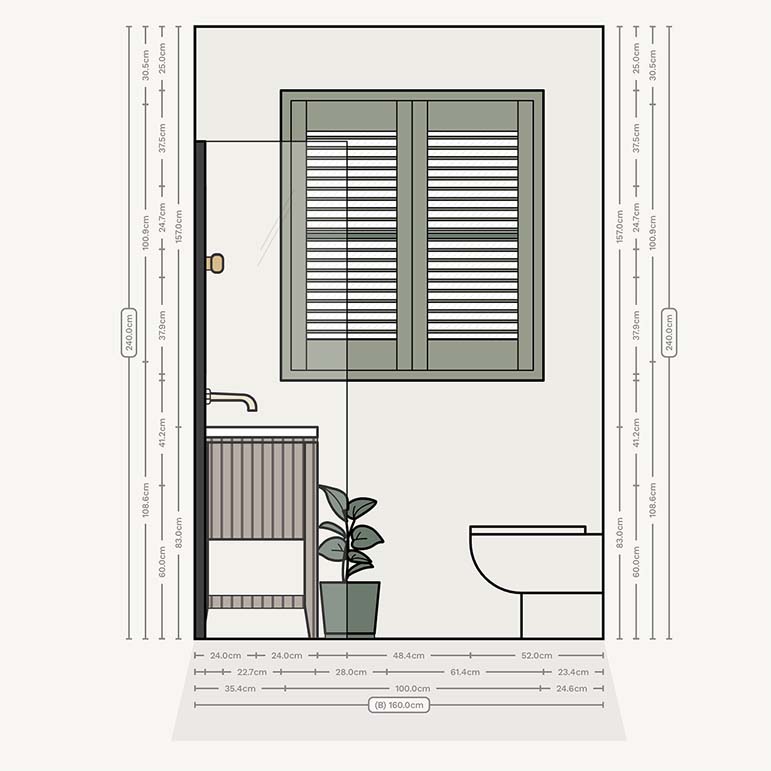

Very small square wetroom shower wall elevation

Square room with corner shower

160 x 160 cm (2.5sqm)

Photo preview of a very small square bathroom with corner shower

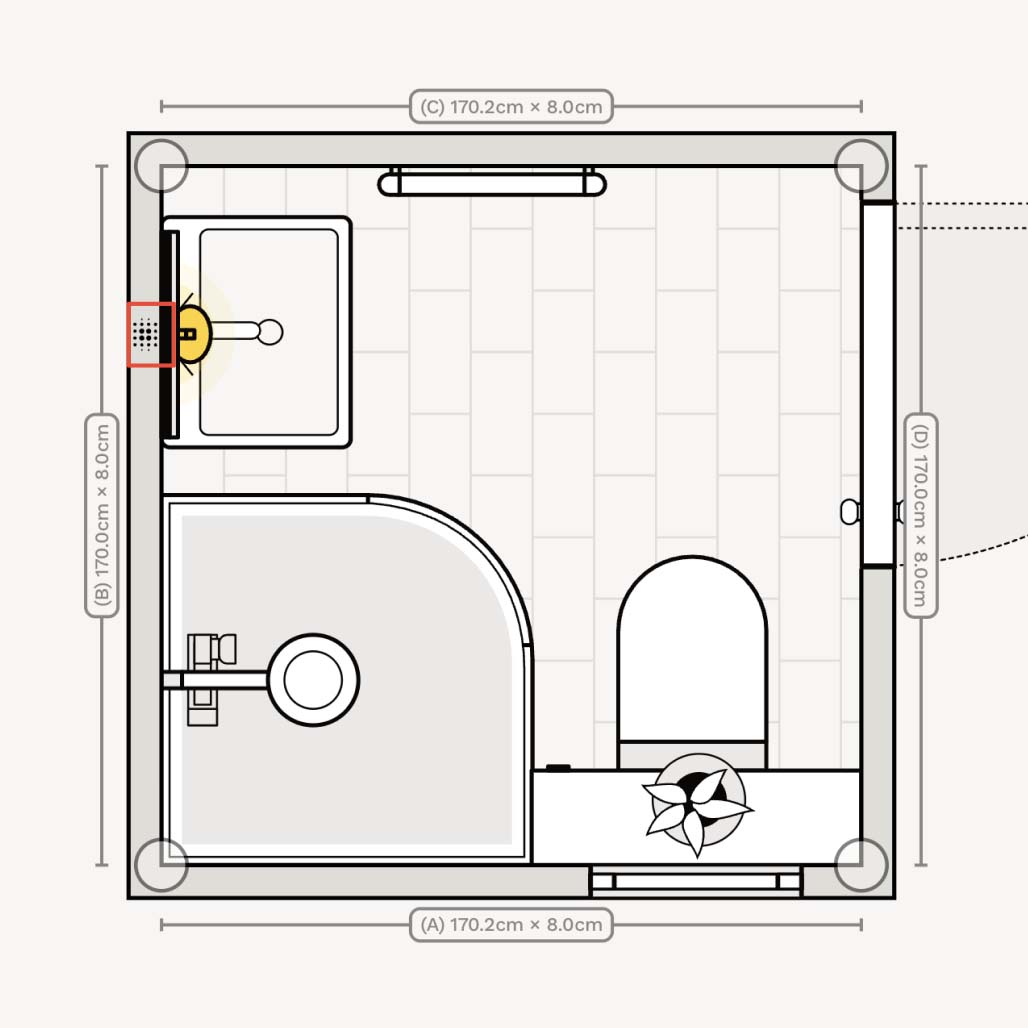

Very small square bathroom with corner shower layout / floor plan

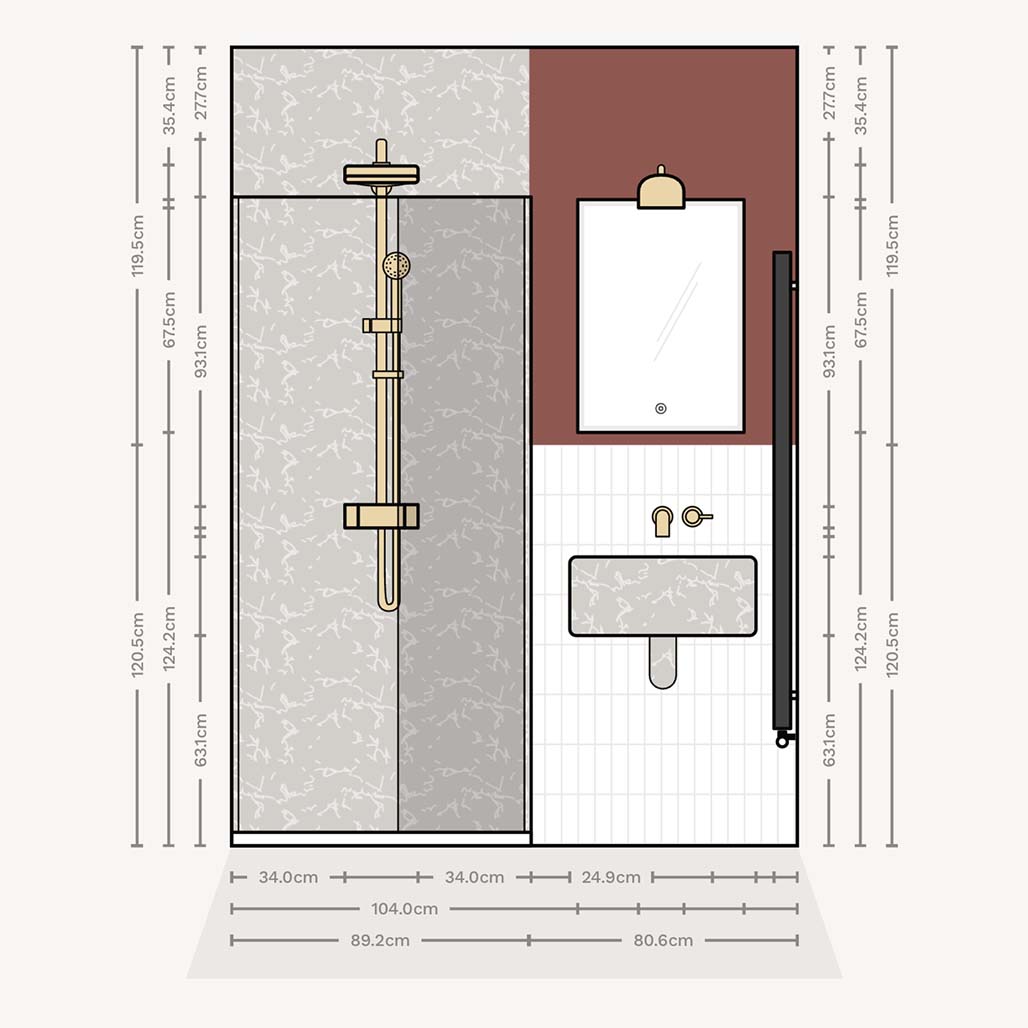

Very small square bathroom with corner shower wall elevation

Hotel layout with bath

160 x 200 cm (3.2sqm)

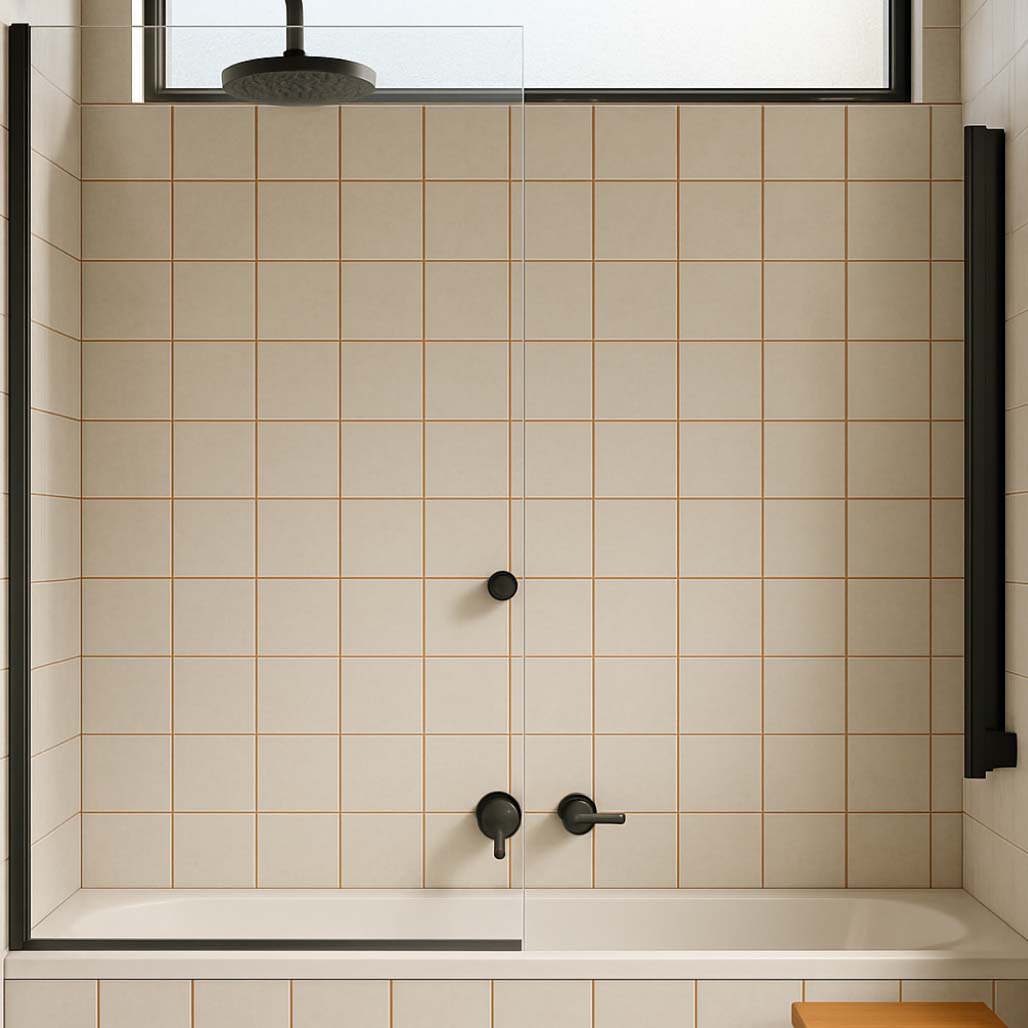

Photo preview of a very small hotel layout bathroom with bath

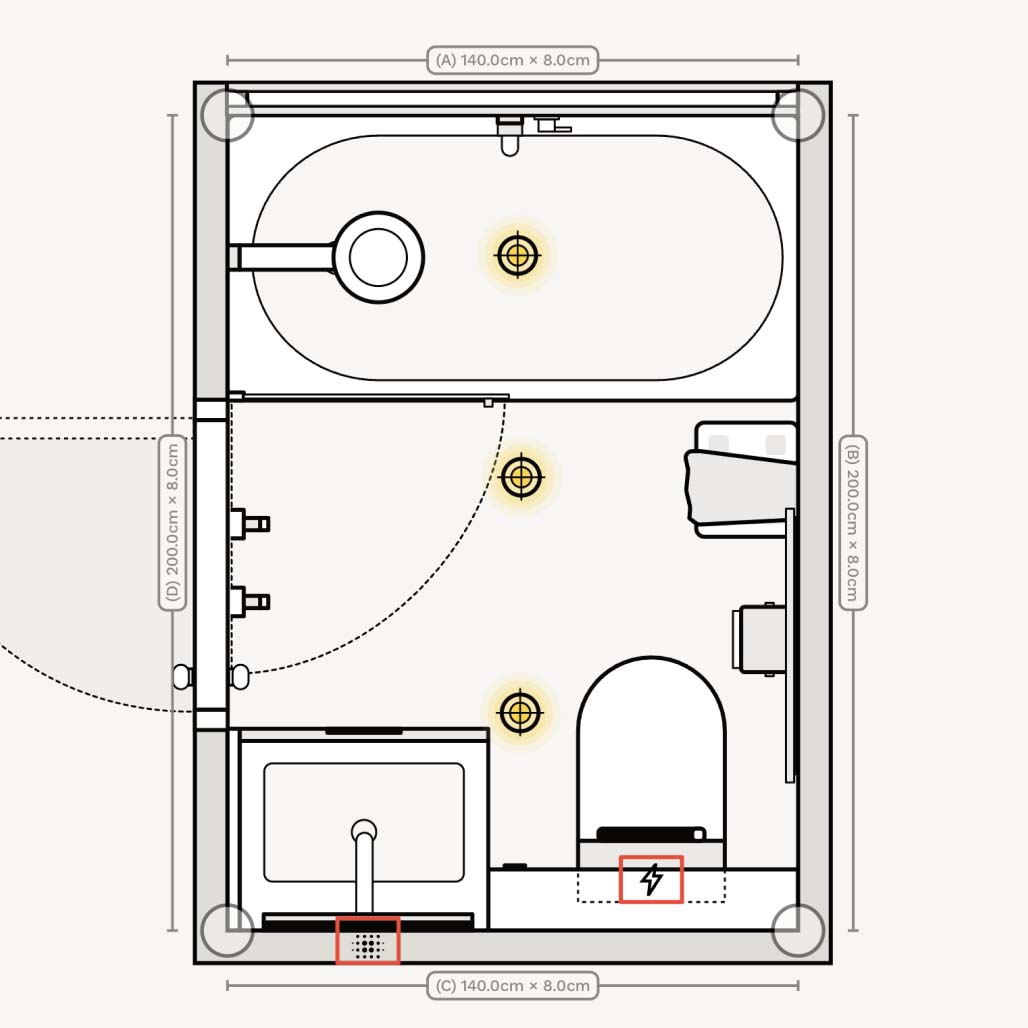

Very small hotel layout with bath layout / floor plan

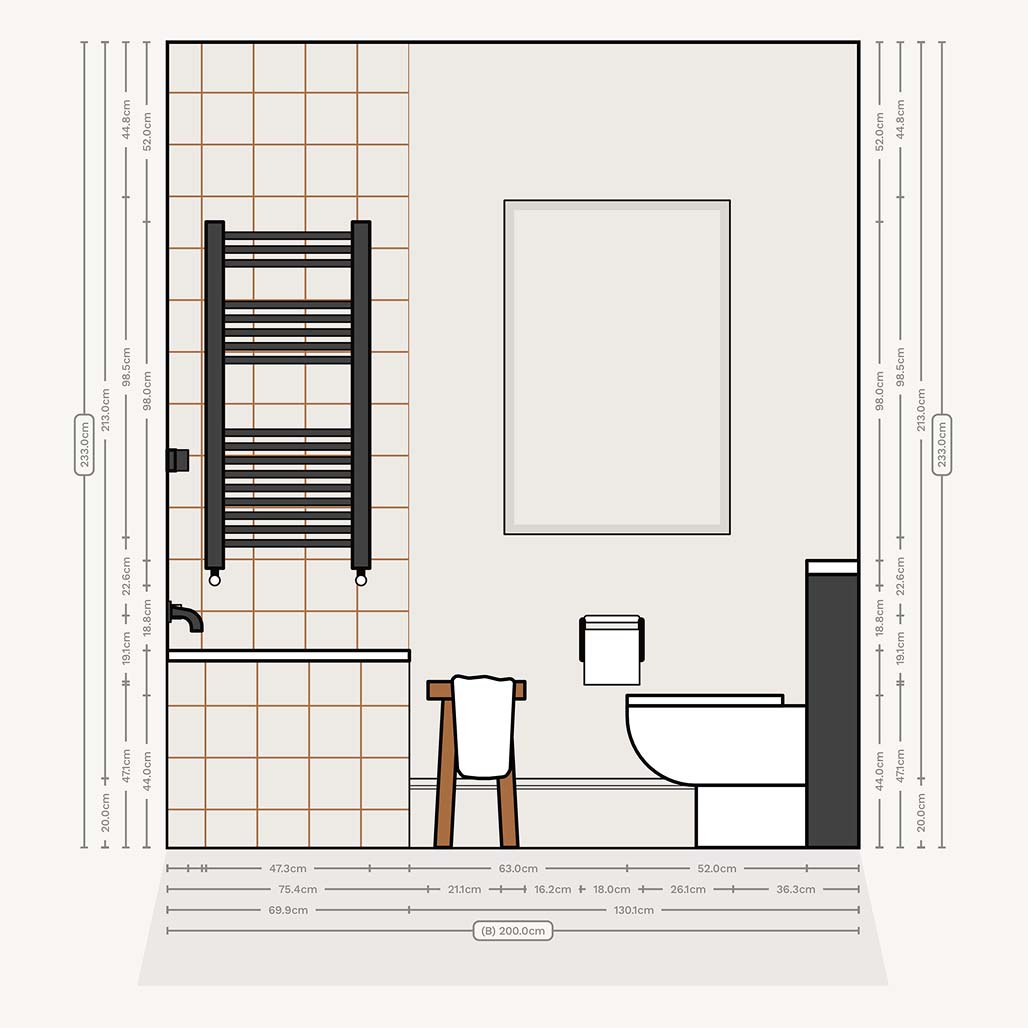

Very small hotel layout with bath wall elevation

Small bathrooms (3-5sqm)

Shower room

224 x 138 cm (3sqm)

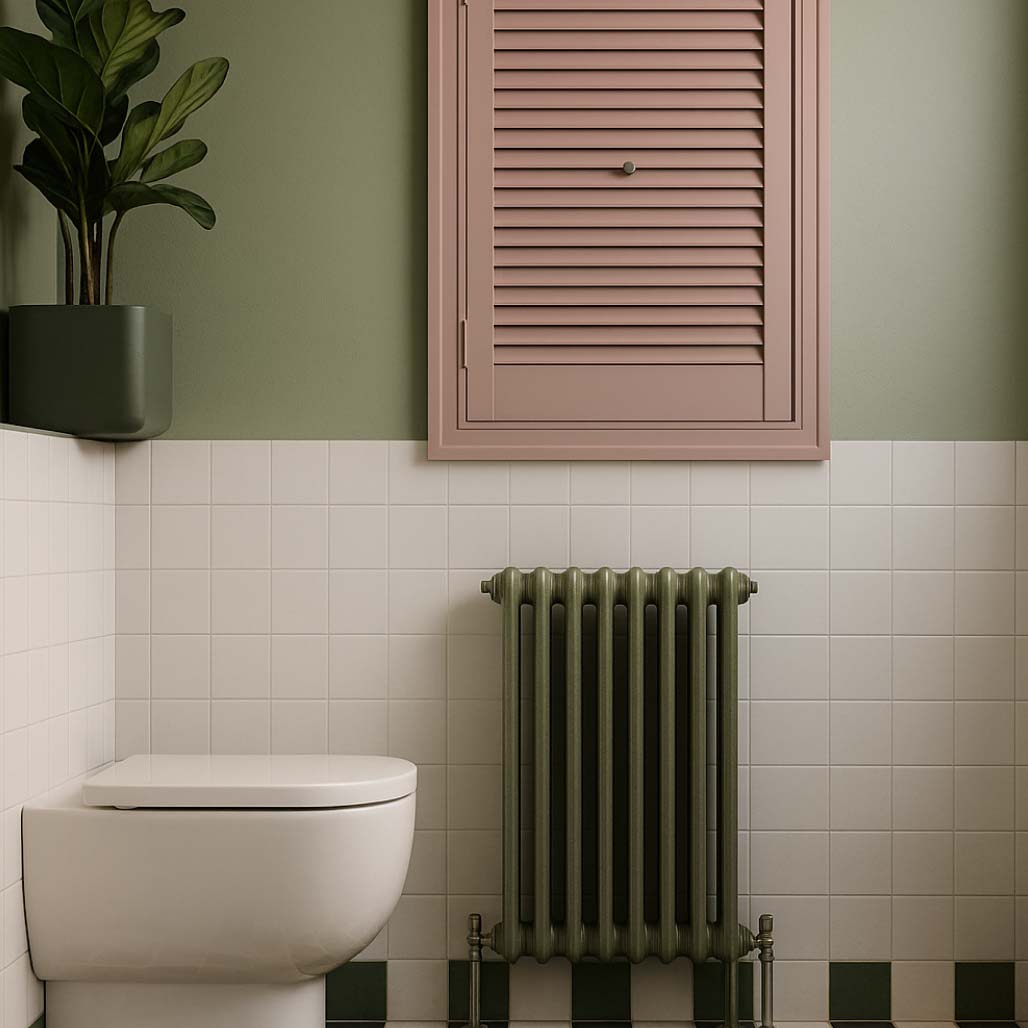

Photo preview of a small shower room elevation

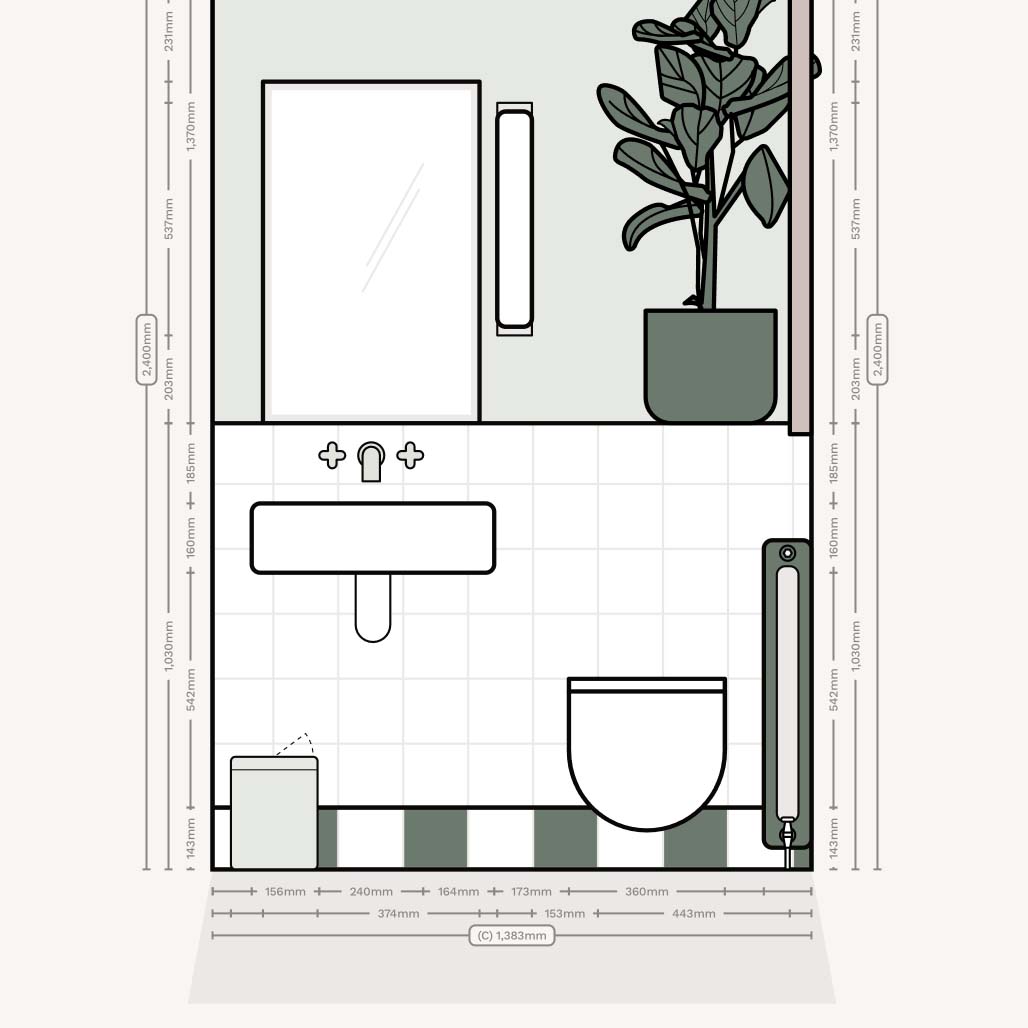

Small shower room wall elevation

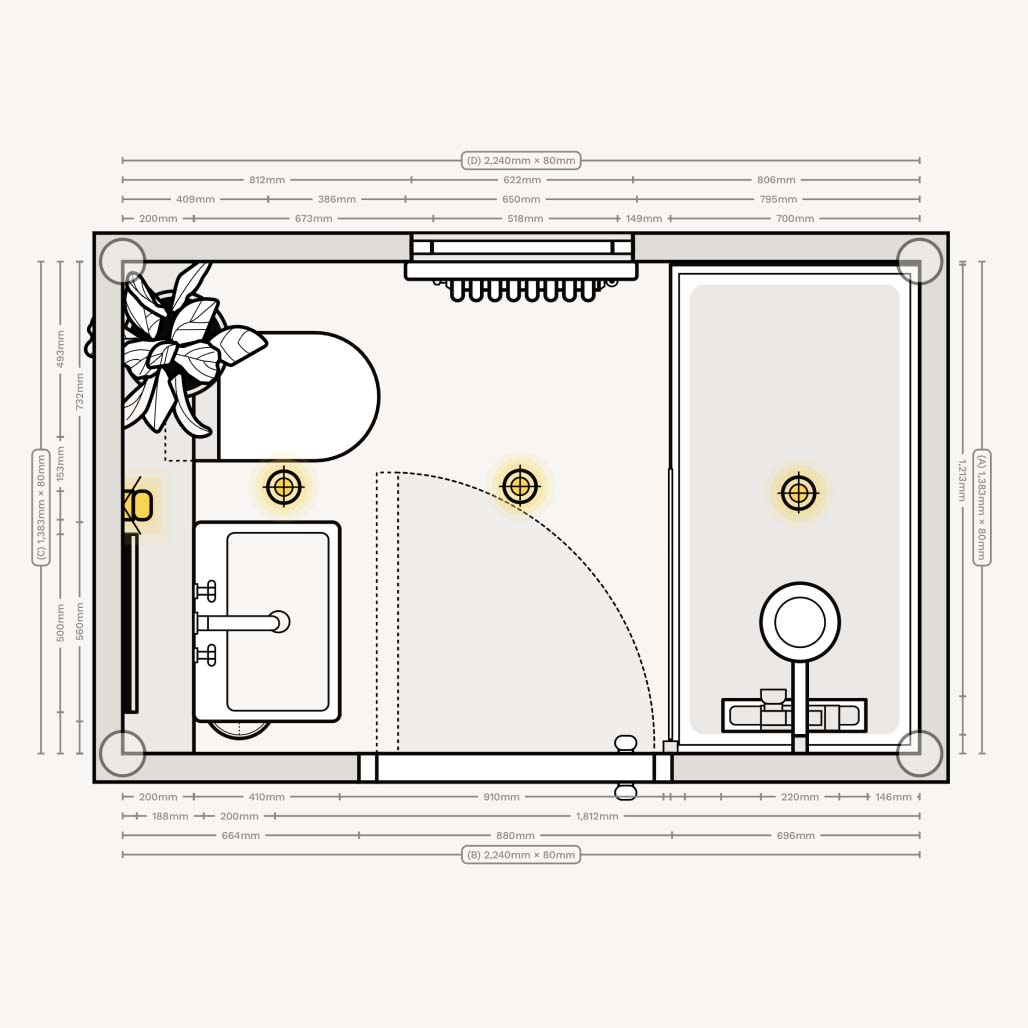

Small shower room floor plan / layout

Three in a row with bath

140 x 224 cm (3.1sqm)

Photo preview of a small bathroom with bath basin and toilet in a row

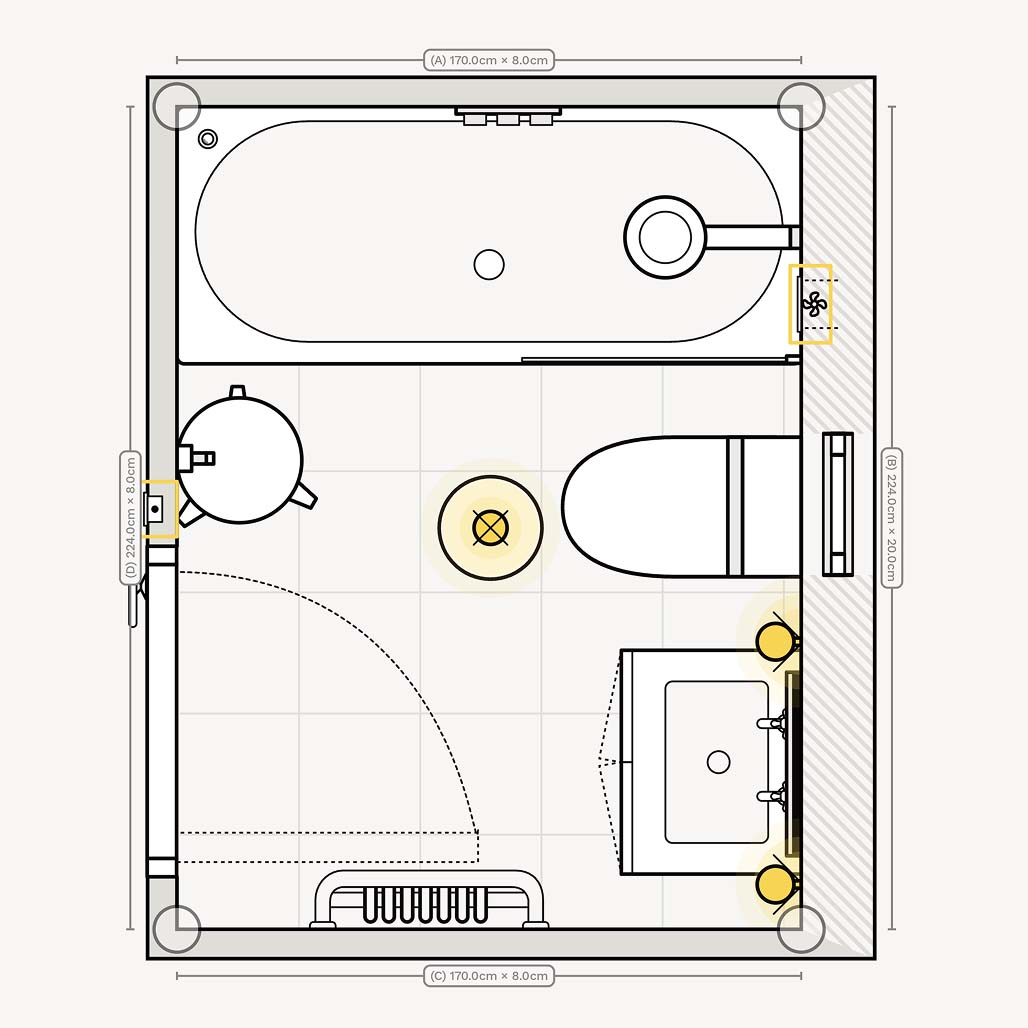

Floor plan of a three in a row small bathroom layout

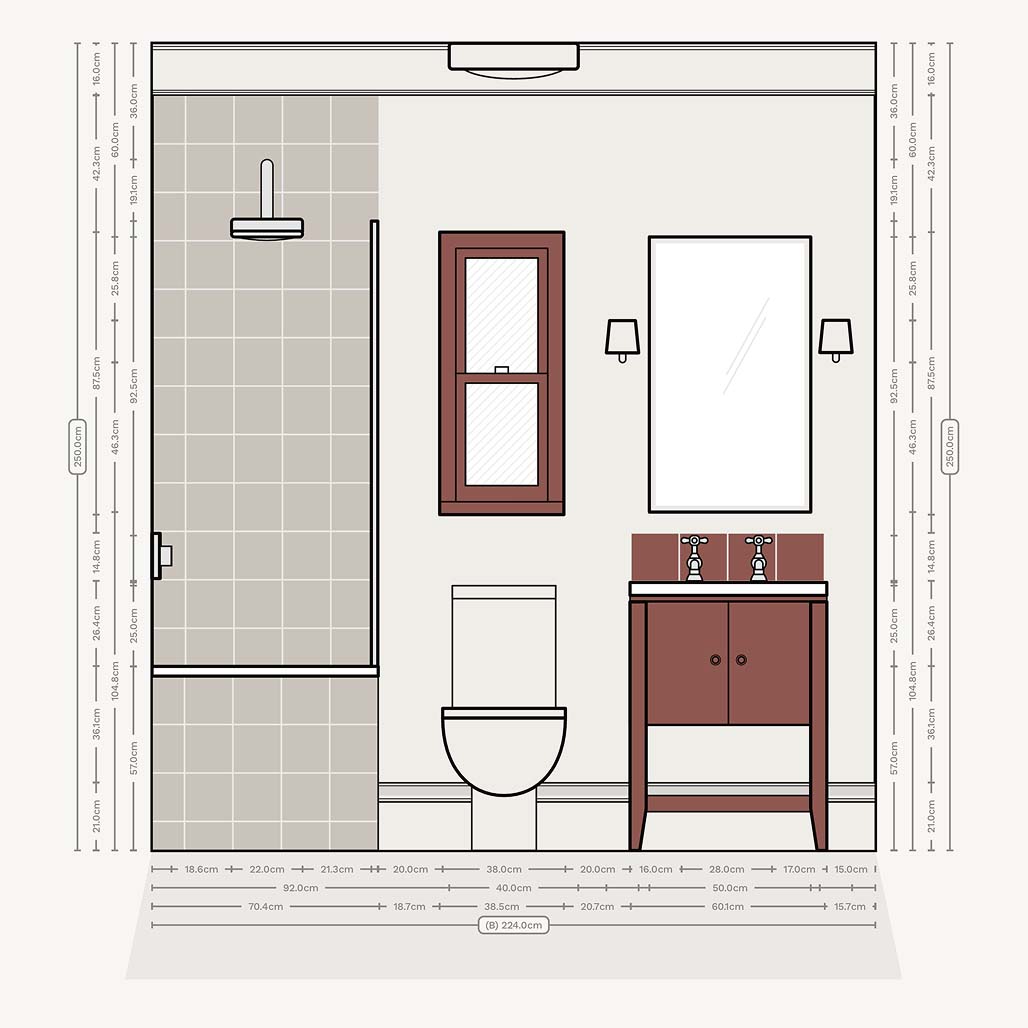

Wall elevaiton of a three in a row small bathroom layout

Medium bathrooms (5-8sqm)

Spacious with separate shower and bath

300 x 250 cm (7.5sqm)

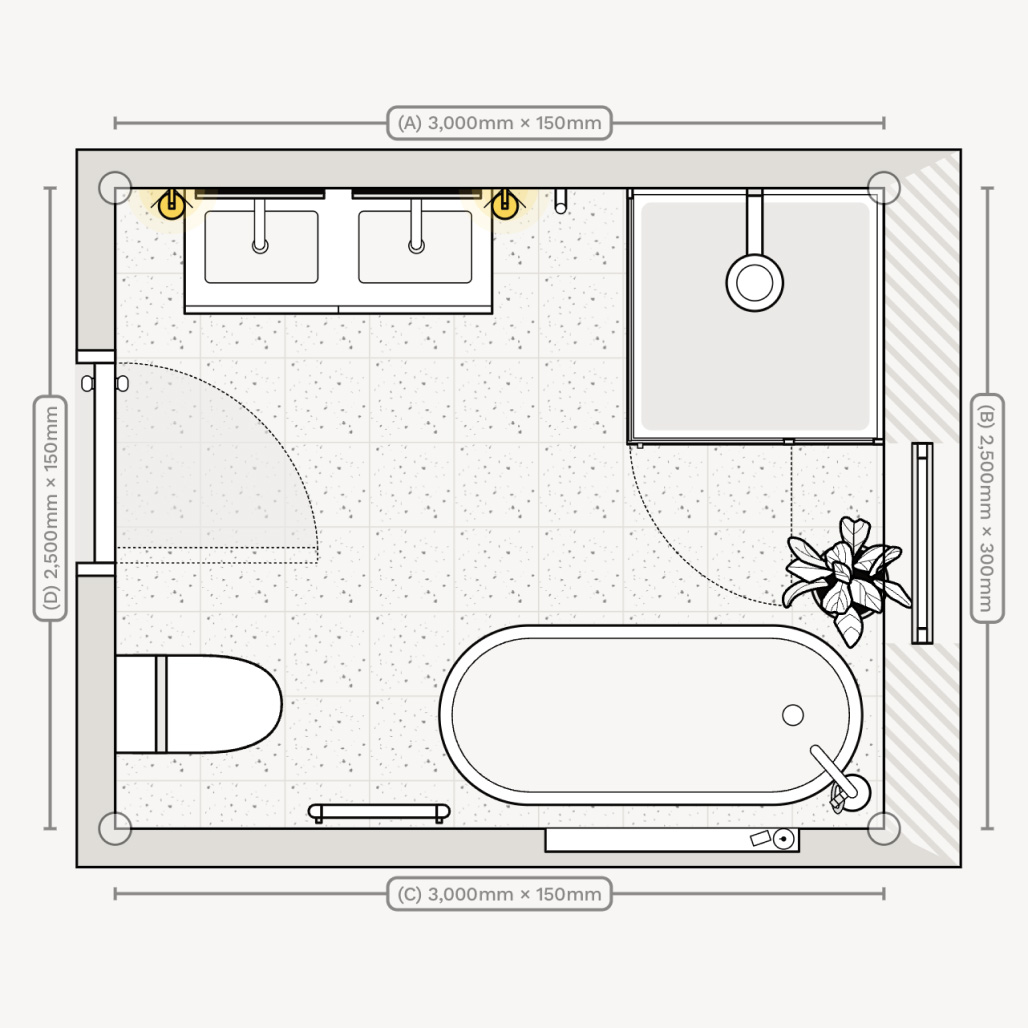

Floor plan / layout of a spacious bathroom with separate shower and bath

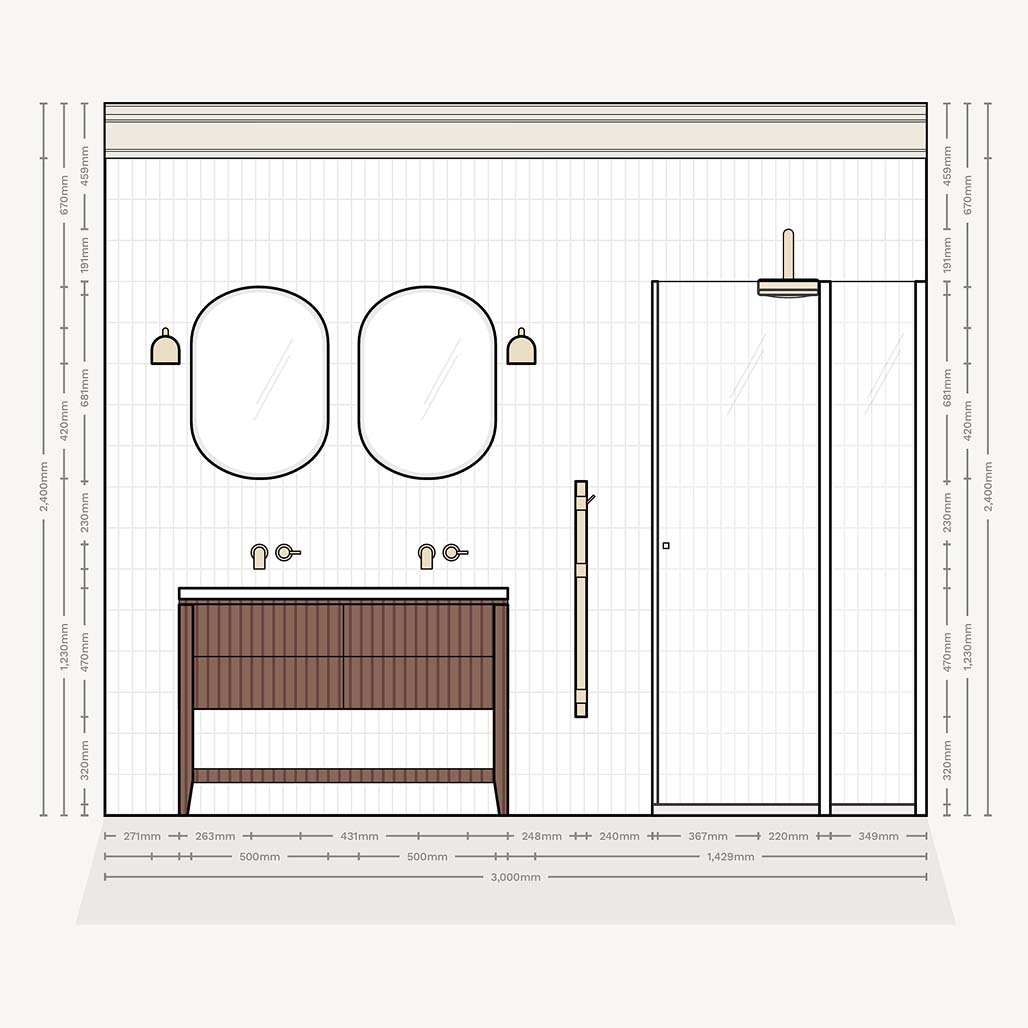

Wall elevation of a spacious bathroom with separate shower and bath

Photo preview of a spacious bathroom with separate shower and bath

Three in a row with double basin and shower

180 x 304 cm (5.4sqm)

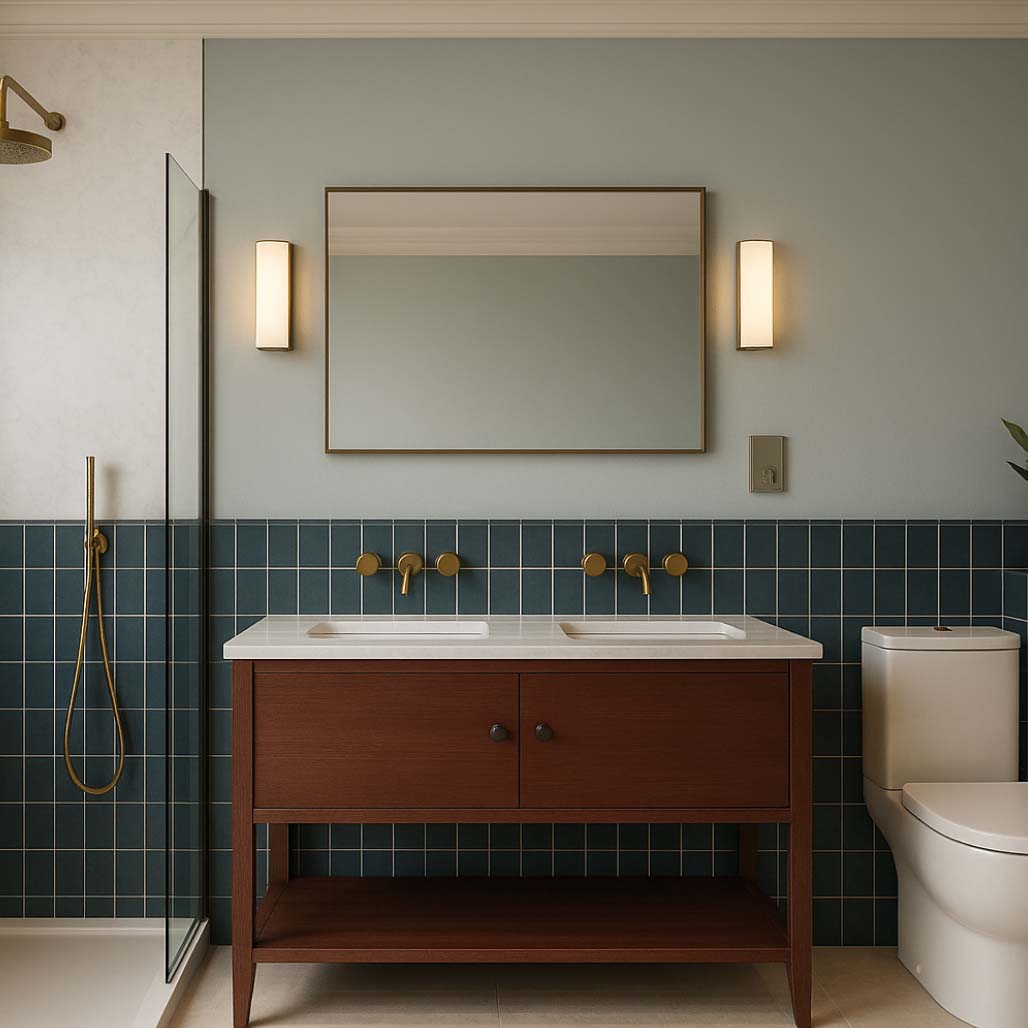

Photo preview of a bathroom plan with a double basin, shower and toilet on the same wall

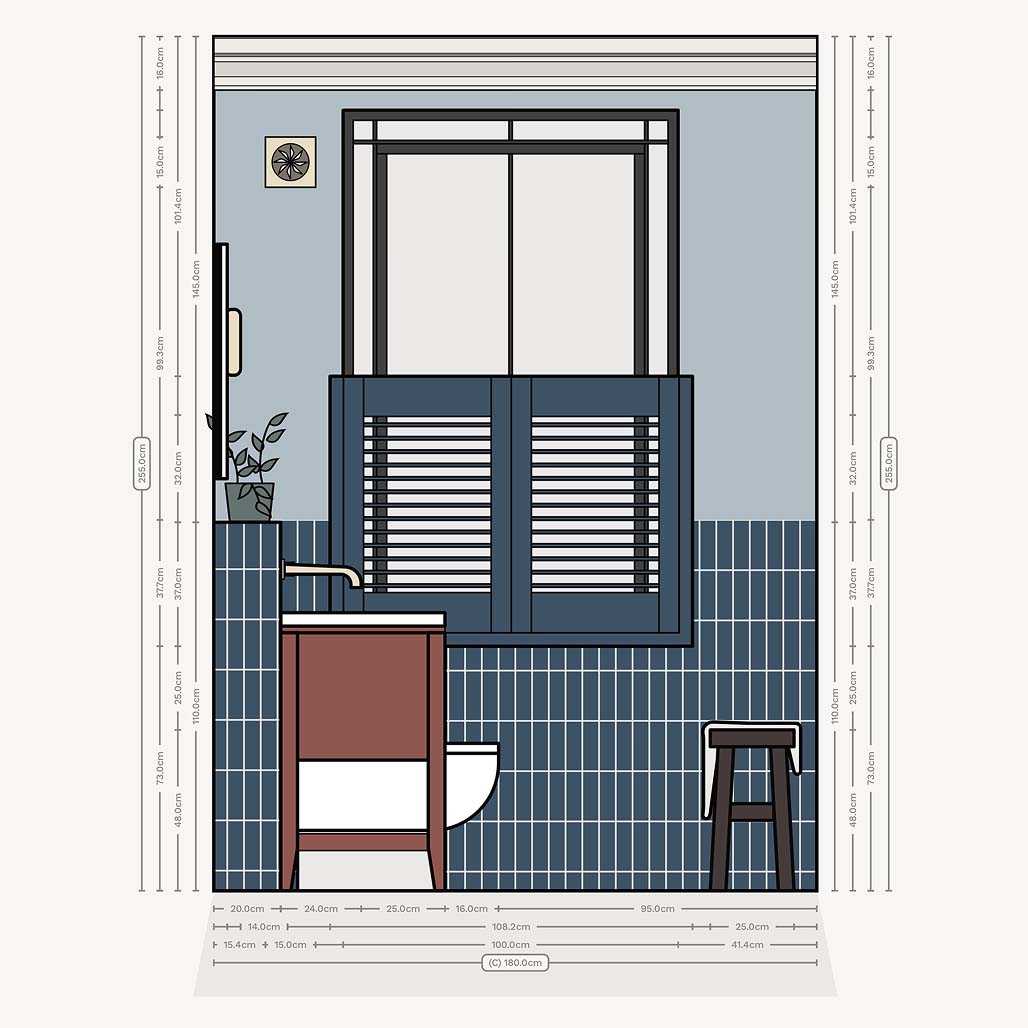

Wall elevation plan of a bathroom with window at one end and blue tiles

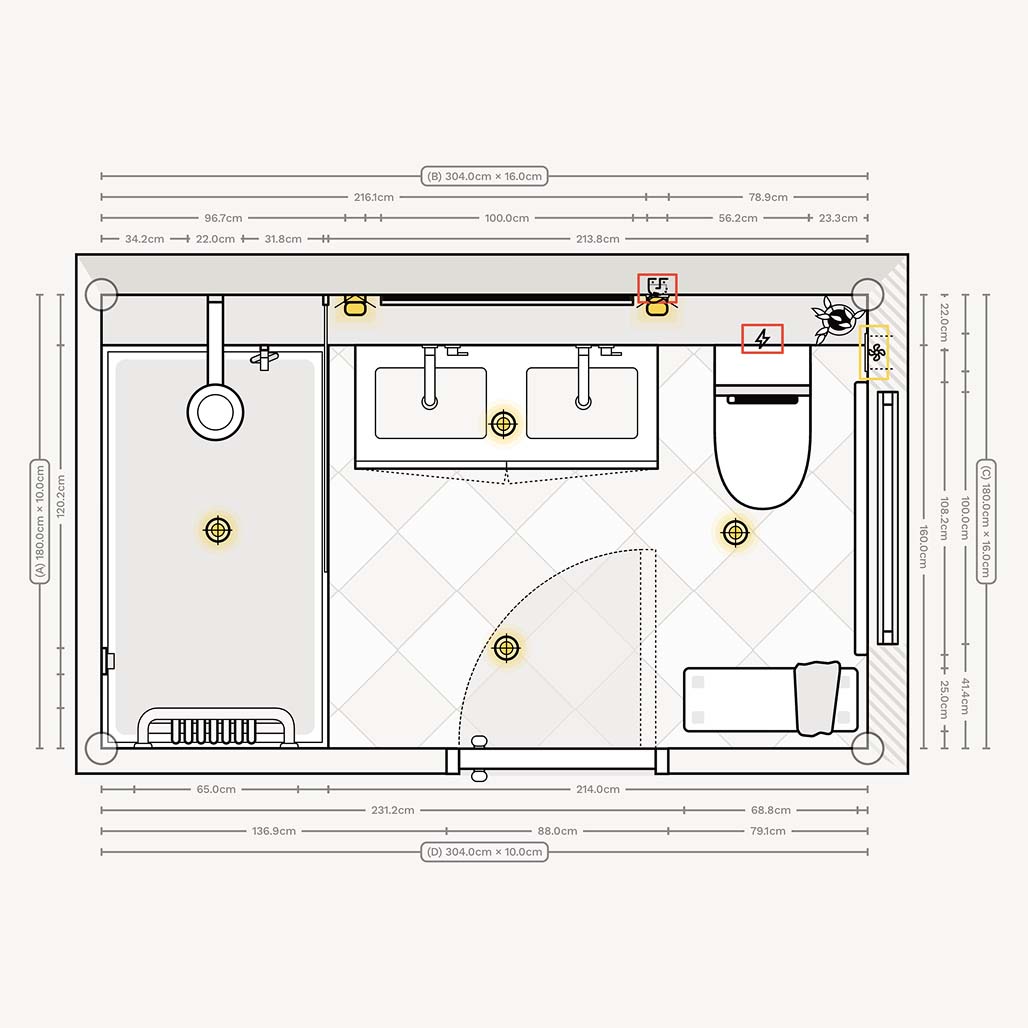

Floor plan / layout of a medium size bathroom with shower, double basin and toilet
